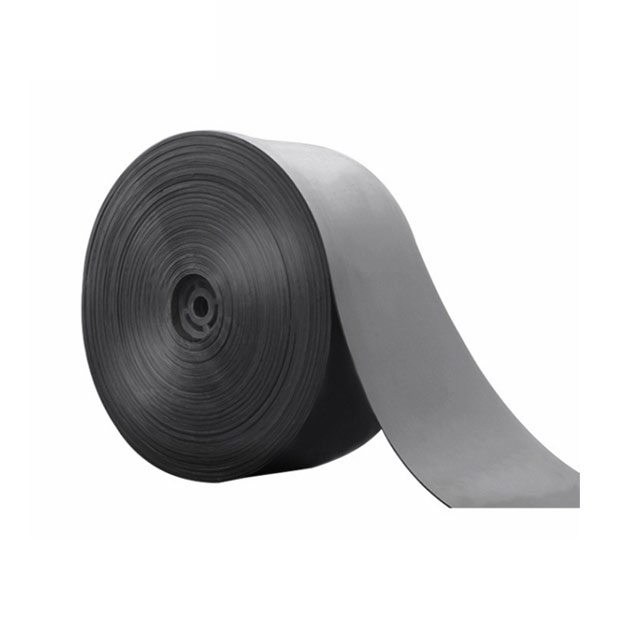

Which Material Grade Gives Fabric Conveyor Belt Better Performance?

Many plant managers view premature belt failure as just another unavoidable cost of doing heavy industrial business. However, these frequent system breakdowns often stem from a critical specification error early on, rather than normal daily wear and tear. The inner carcass material acts as the ultimate structural backbone of your conveying system. It directly dictates the maximum load capacity, impact absorption limits, and long-term tracking stability of the entire line. You rely entirely on this hidden fabric layer to keep your operations running safely and efficiently. Ultimately, optimal performance isn't about finding the objectively strongest material available on the market. It requires matching the fabric grade exactly to your load weight, incline angles, environmental conditions, and overall budget. In this guide, we will explore exactly how to evaluate different material grades. You will learn how to align these specifications to maximize your system's daily reliability.

Key Takeaways

• The tension member (carcass) dictates up to 80% of a belt’s mechanical reliability; choosing the wrong fabric grade leads to stretching, tracking issues, or ply separation.
• An EP conveyor belt (Polyester-Nylon) is the optimal baseline for most modern industrial applications due to its low elongation and high moisture resistance.
• Drafting precise fabric conveyor belt specifications prevents over-engineering (wasting budget) and under-engineering (risking catastrophic downtime).
• Selecting a reputable fabric conveyor belt supplier requires verifying their adherence to international testing standards (DIN, ISO, ASTM) for adhesion and tensile strength.

The Business Impact of Conveyor Belt Fabric Selection

Every fabric conveyor belt relies on a hidden internal structure to carry heavy industrial loads. When you choose the wrong fabric, the financial consequences extend far beyond the initial purchase price. The true cost of operational downtime always eclipses the belt's original invoice. Poor material choices inevitably lead to frustrating splicing failures, excessive stretch, and severe tracking misalignments. When a belt wanders off its idlers, you must halt operations immediately to prevent structural damage. These sudden production stops drain facility profitability and waste valuable maintenance hours.

Understanding the anatomy of the carcass helps you prevent these costly failures. The internal fabric consists of two main thread directions woven together. The warp threads run longitudinally along the length of the belt. They handle the primary tension forces pulled by the drive motor. The weft threads run transversely across the width of the belt. They provide structural rigidity and impact resistance. The specific material grade used for these threads dictates how the belt behaves under high stress. It controls how much the belt will stretch and how securely it holds mechanical fasteners.

Accurate material selection directly mitigates severe operational risks. In heavy-duty environments, selecting the wrong fabric causes rapid edge wear. It can also lead to cupping, where the belt curls upward and spills valuable material off the sides. Furthermore, mismatched tension layers often result in ply delamination. This catastrophic failure happens when the outer rubber cover separates completely from the internal fabric carcass. Choosing the correct warp and weft materials prevents these structural failures and keeps your line moving safely.

Core Fabric Material Grades: Evaluating the Options

You must evaluate your options carefully to ensure operational success. Engineers categorize these fabrics by the synthetic or natural materials used in their warp and weft threads. Here is a detailed breakdown of the core material grades available for modern industrial applications.

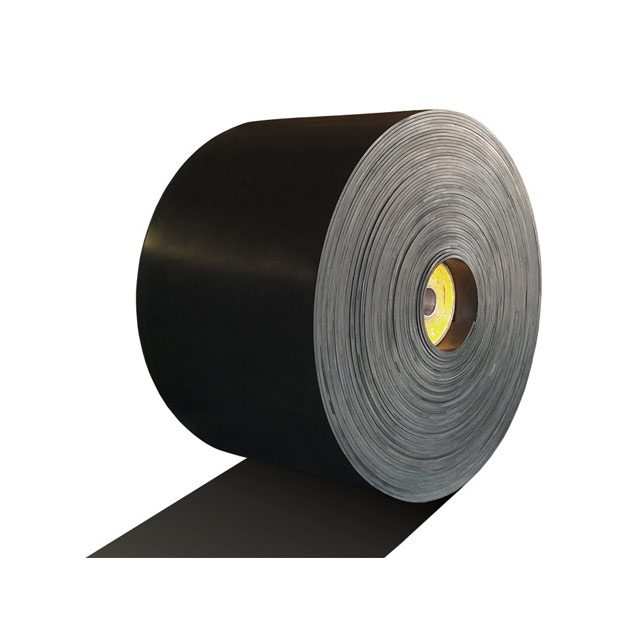

EP Conveyor Belt (Polyester Warp / Nylon Weft)

An ep conveyor belt represents the industry standard for most modern material handling applications. The "E" stands for polyester used in the longitudinal warp threads. The "P" stands for polyamide, commonly known as nylon, used in the transverse weft threads.

• Strengths: This combination offers exceptional low elongation. You experience minimal stretch during continuous operation, reducing maintenance interventions. It also provides a high initial modulus, meaning it strongly resists deformation under heavy starting loads. Furthermore, the polyester warp offers total resistance to moisture and mildew.
• Ideal Use Cases: You should specify this grade for long-distance conveying where stretch must be minimized. It excels in high-speed operations. It is also perfect for wet environments, such as aggregate wash plants or outdoor mineral processing facilities exposed to rain.
• Trade-offs: EP fabrics have slightly lower extreme impact resistance compared to pure nylon alternatives. Highly aggressive drop zones with large, jagged rocks might require extra top cover thickness to compensate.

NN (Nylon-Nylon)

NN belts utilize strong nylon fibers for both the longitudinal warp and transverse weft threads. This creates a highly durable, resilient internal structure.

• Strengths: Nylon provides maximum flexibility across the entire system. It delivers excellent troughability, allowing the belt to form a deep "U" shape over idlers without stiffening. It also features superior impact resistance and rapid recovery from heavy, sudden shocks.
• Ideal Use Cases: We recommend NN fabrics for short, high-impact applications. They perform beautifully in hard rock mining and directly under primary crushers. They also navigate smaller pulley diameters gracefully without cracking or fatiguing the splice.
• Trade-offs: Nylon has much higher elongation than polyester. This significant stretch requires longer take-up travel distances to maintain tension. It also absorbs moisture readily. This makes it highly unsuitable for wet or freezing conditions where absorbed water can freeze and destroy the carcass.

CC (Cotton-Cotton) and Blends

Cotton served as the original standard for industrial belting long before modern synthetic fibers emerged.

• Strengths: Cotton provides excellent mechanical fastening properties. It grips metal splices firmly and securely. It also boasts natural, strong adhesion to traditional rubber cover compounds during vulcanization.
• Ideal Use Cases: You might still see CC belts operating in older legacy systems. They work adequately for light-duty agricultural transport. They also function well in specific dry, indoor applications like packaging lines or mail sorting facilities.
• Trade-offs: Cotton remains highly susceptible to rot, mildew, and chemical degradation. It possesses a very low tensile strength relative to its bulky weight. Today, it is largely obsolete for heavy industry applications.

Fabric Grade Performance Comparison Matrix

Aligning Fabric Conveyor Belt Specifications with Operational Realities

Selecting a general material category is only the first step. You must align your precise fabric conveyor belt specifications directly to your actual operational realities. Failing to match these parameters guarantees premature wear and frequent maintenance interventions.

1. Tensile Strength and Working Tension
   You must calculate the required strength rating accurately. Engineers measure this tension in PIW (Pounds per Inch of Width) or N/mm (Newtons per millimeter). You calculate this figure based on several overlapping factors. You must account for the drive motor horsepower, the incline angle of the conveyor frame, and the bulk density of your transported material. A steeper incline requires an exponentially higher working tension to prevent backward slippage.
2. Elongation Allowances and Take-Up Limits
   Every mechanical system has a physical limit for accommodating stretch. You must evaluate how much stretch your take-up mechanism can actually handle. If you use a screw take-up or a gravity take-up with limited vertical travel, an NN belt will eventually bottom out. Once the take-up hits its limit, the belt loses tension and slips on the drive pulley. In these limited-travel cases, an EP grade becomes mandatory due to its minimal elongation profile.
3. Troughability and Pulley Diameter Constraints
   Many operators mistakenly believe more plies always equal better performance. Thicker, higher-ply belts might actually become too rigid for your system. If the fabric grade is too stiff, it will bridge across the center idlers instead of resting inside them. This creates terrible tracking problems. Furthermore, wrapping a rigid, multi-ply belt around a small terminal pulley creates massive internal stress. This often causes mechanical splices to tear out or the internal plies to separate entirely.
4. Environmental Variables
   You must always adjust your specifications based on ambient environmental conditions. Chemical exposure dictates the need for specialized rubber cover grades to protect the inner fabric. Temperature extremes require synthetic fabrics that will not become brittle in freezing weather. High ambient humidity instantly disqualifies natural fibers like cotton and makes nylon a very risky choice.

How to Vet a Fabric Conveyor Belt Supplier for Critical Applications

Finding the right manufacturing partner is just as critical as finding the right fabric. Selecting a reliable fabric conveyor belt supplier requires strict due diligence. You must carefully verify their internal manufacturing processes and quality controls.

• Testing and Transparency: You must require actual laboratory test data before purchasing. Do not accept vague marketing claims about belt strength. Ask for full-thickness tensile strength reports. Demand precise ply-to-ply adhesion metrics. Request elongation at break data based on strict international standards like ISO 412 or DIN 22102. Legitimate suppliers will provide these documents willingly.
• Manufacturing Consistency: Look for suppliers who control their production processes end-to-end. They should own and maintain their vulcanization presses and calendering equipment. This ownership ensures they maintain consistent fabric tension during the curing process. Variations in tension during manufacturing cause the final belt to track crookedly, no matter how perfectly you align your idlers.
• Customization Capabilities: The best suppliers tailor their products to your exact facility needs. They must be able to bond specialized cover compounds over your specified fabric carcass. You might need highly abrasion-resistant, flame-retardant, or oil-resistant rubber depending on your specific material load.
• Lead Times and Warranty: Always evaluate the commercial terms carefully. Review their factory splice guarantees and look for hidden warranty exclusions. Strong post-installation technical support often separates true industrial partners from basic commodity brokers. Ensure they will assist you if tracking issues arise during the initial break-in period.

Conclusion

Optimal mechanical performance relies entirely on technical synergy. You must match the specific fabric grade directly to your application's unique daily demands. A belt typically fails when its internal structure cannot handle the local environment, applied tension, or impact loads. By understanding the distinct physical properties of polyester, nylon, and cotton, you can drastically improve your system's operational lifespan.

Your next actionable step should be a thorough internal audit. We strongly advise engineers and procurement teams to inspect their current systems today. Audit your existing take-up limits and review your historical maintenance failure logs before writing your next specification sheet. Understanding exactly how and why your last belt failed tells you exactly what parameters to change.

Finally, never guess on tension requirements. We encourage you to consult directly with an engineering-led manufacturer. Let their technical experts run a specific tension and load calculation for your facility to ensure absolute reliability.

FAQ

Q: What is the difference between EP and NN fabric conveyor belts?

A: EP belts use polyester warp and nylon weft threads. They offer very low stretch and excellent moisture resistance, making them ideal for long distances. NN belts use nylon for both threads. They provide superior flexibility and heavy impact absorption but stretch significantly more. NN also absorbs moisture readily, making EP much better for wet environments.

Q: How many plies should my fabric conveyor belt have?

A: Ply count depends entirely on the fabric's tensile rating per ply and your required troughing flexibility. You should never just add plies to increase total strength. Too many plies make the belt overly rigid. This causes it to bridge across the idlers and track poorly along the conveyor frame.

Q: Why is my fabric conveyor belt constantly stretching?

A: Constant stretching usually indicates under-speccing the working tension rating. It also happens frequently if you use an NN (nylon) carcass in an application that actually requires the low-stretch properties of an EP carcass. You should check your physical take-up limits and consider switching to a polyester-based tension member.

Q: What information is required to quote fabric conveyor belt specifications?

A: To get an accurate manufacturing quote, you must provide several key details. List the belt width, total length, and preferred fabric type. Include the required strength rating in N/mm or PIW, the total ply count, top and bottom cover thicknesses, and the specific rubber cover grade required for your environment.
