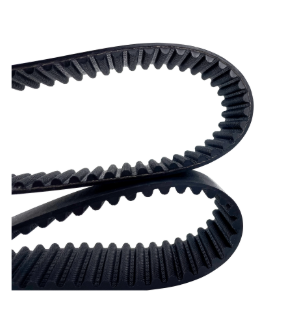

High speed timing belts are synchronous power transmission components that use toothed profiles to mesh with corresponding pulley teeth, delivering precise motion control without slippage. Unlike friction-drive belts such as V-belts or flat belts, timing belts maintain a constant speed ratio between driving and driven shafts, making them suitable for applications requiring accurate positioning and synchronization. These belts operate across a range of speeds, from low-speed indexing to high-speed continuous operation, and are specified where angular velocity consistency is a design requirement.
The toothed profile on the inner surface of the belt meshes with pulley grooves to provide synchronous power transmission. The tooth shape is precisely molded to ensure smooth engagement and disengagement with pulley teeth, reducing noise and vibration during operation. A nylon fabric cover on the tooth surfaces reduces friction between the belt teeth and pulley grooves, contributing to consistent operation over the service life of the belt. Different tooth profile geometries — including curvilinear, trapezoidal, and modified curvilinear designs — are available to match specific load and speed requirements.
Embedded within the belt body, tensile cords run longitudinally along the belt length to provide resistance to elongation under load. These cords are made from high-tensile-strength fibers such as fiberglass or steel, selected for their dimensional stability and load-bearing properties. The tensile cords are the primary load-bearing element of the belt and determine its overall tensile strength rating. Cord material and construction are chosen based on the application's power transmission requirements and expected load cycles.
The belt body is typically constructed from a rubber or polyurethane compound that encases the tensile cords and forms the tooth profiles. Rubber compounds offer flexibility and good resistance to flex fatigue, making them suitable for a wide range of industrial applications. Polyurethane formulations provide additional resistance to certain chemicals and environmental conditions. The compound is selected based on the application's operating temperature range, environmental exposure, and load cycle requirements.
Tooth Profile Series | Available Models | Tooth Pitch | Profile Geometry |
|---|---|---|---|
HTD (Circular Arc) | 3M, 5M, 8M, 14M, 20M | 3 mm, 5 mm, 8 mm, 14 mm, 20 mm | Curvilinear |
Trapezoidal (T-Series) | T2.5, T5, T10, T20 | 2.5 mm, 5 mm, 10 mm, 20 mm | Trapezoidal |
STD (Semi-Circular) | S3M, S5M, S8M, S14M | 3 mm, 5 mm, 8 mm, 14 mm | Modified curvilinear |
Belt width and length are specified according to application requirements. Length is determined by the number of teeth multiplied by the tooth pitch, with standard lengths available across each profile series.
High speed timing belts are used across a broad spectrum of industrial equipment. In industrial automation systems, they provide synchronized motion for conveyor lines, packaging machinery, and assembly equipment where consistent timing between multiple stations is required. Printing presses rely on timing belts for precise paper feed registration and color-to-color alignment at high production speeds. Textile machinery uses them for synchronized drive systems in spinning, weaving, and knitting equipment. Machine tools deploy timing belts for spindle drives and axis positioning where positional accuracy affects part quality. Additional applications include food processing equipment, medical devices, office automation equipment, robotics, and semiconductor manufacturing — anywhere that precise speed ratio maintenance and positioning accuracy are design requirements.
Selecting the correct high speed timing belt involves evaluating several factors. The required transmission power and operating speed determine the appropriate belt width and tooth profile size. Higher power applications typically require wider belts or larger tooth profiles with greater shear strength per tooth. The center distance between pulleys and the desired speed ratio determine the belt length and the number of teeth on each pulley. Environmental conditions — including temperature range, exposure to oils or chemicals, and presence of dust or debris — influence the choice of belt material compound. Proper tensioning is essential for consistent performance; insufficient tension can cause tooth jump under load, while excessive tension accelerates bearing wear and reduces belt service life. Regular inspection for tooth wear, cracking, and proper alignment is recommended as part of a preventive maintenance program.
High speed timing belts are available in three primary tooth profile series: HTD circular arc profiles (3M, 5M, 8M, 14M, 20M), trapezoidal T-series profiles (T2.5, T5, T10, T20), and STD semi-circular profiles (S3M, S5M, S8M, S14M). Each profile offers different load capacity, noise, and engagement characteristics suited to specific application requirements.
Timing belt drives can achieve transmission efficiencies of up to 99 percent under properly tensioned conditions with correctly matched pulleys. Actual efficiency varies based on factors including belt type, pulley diameter, operating speed, tension level, and alignment accuracy. Proper installation and maintenance are required to maintain rated efficiency over the service life.
High speed timing belts typically use a rubber or polyurethane body compound with embedded tensile cords made from fiberglass or steel. The tooth surfaces are covered with nylon fabric to reduce friction and wear during engagement with pulleys. Material selection depends on the application's load, speed, temperature range, and environmental exposure requirements.
Timing belt size is determined by three parameters: tooth profile type (e.g., 5M, T10), belt length (specified by number of teeth multiplied by pitch), and belt width. The required length depends on pulley center distance and pulley tooth counts. Consult application specifications or a technical advisor for proper sizing calculations based on your specific drive configuration.
