A V belt is far more than a simple rubber loop; it is a precision torque transmission device that relies on the "wedge effect" to multiply friction. Unlike flat belts that depend entirely on high surface tension to maintain grip, a v belt uses its trapezoidal shape to lock into the sheave groove. As the load increases, the belt wedges deeper, creating a self-locking mechanism that prevents slippage without requiring excessive bearing load.
From a business perspective, these components present a paradox. They are often low-cost items, frequently priced under $50, yet their failure can trigger thousands of dollars in unscheduled downtime. Selecting the wrong cross-section or material is a common, expensive error.
This article moves beyond basic definitions. We will cover technical cross-section selection, decode the confusing "Outside Circumference vs. Pitch Length" numbering systems, and outline maintenance strategies driven by Total Cost of Ownership (TCO). You will learn how to select the right belt to maximize efficiency and equipment longevity.
The Wedge Advantage: Unlike flat belts, V belts utilize self-locking friction geometry—as load increases, the belt wedges deeper into the sheave groove to prevent slip.
Decoding is Critical: Part numbers are inconsistent across standards. An "A" section belt measures by Inside Circumference (IC), while an "L" section measures by Outside Circumference (OC).
Material Matters: Standard rubber performs for steady loads; Kevlar/Aramid is required for "shock loads" (clutching applications) and reverse bending.
Efficiency Limits: Standard wrapped V belts cap at ~93-95% efficiency; raw-edge cogged belts can reach 98%, directly impacting energy TCO.
The effectiveness of a V belt comes from its geometry, not just the stickiness of the rubber. Most industrial belts feature a trapezoidal cross-section with a 40° included angle. This specific angle is critical. When tension is applied, the vertical force converts into perpendicular pressure against the pulley sidewalls.
This creates a significant mechanical advantage over flat belts. A flat belt requires high static tension to prevent slipping, which places heavy radial loads on motor bearings and shafts. In contrast, the V-profile multiplies the grip force. You can transmit the same horsepower with significantly less static tension, which extends the life of your bearings and reduces energy consumption.
Engineers design these belts to function as a mechanical fuse. There is a distinction between "creep" and "slip." Creep is a normal, slight elasticity loss as the belt enters the tight side of the drive. Slip, however, is a failure of grip.
In extreme overload situations—such as a rock jamming a crusher—the belt is designed to slip controllably. This sacrificial action protects the far more expensive motor from burning out. However, constant slipping due to poor tensioning generates heat that destroys the belt rapidly.
Selecting the correct belt series is the first step in drive design. Manufacturers classify belts into four primary categories based on their dimensions and power density.
These are the workhorses of heavy industry and agriculture. You will often find them on older equipment or systems designed for high availability rather than compactness. While they are widely available and cost-effective, Classical belts have a lower power density per inch of width compared to modern narrow wedges.
Engineers design FHP belts for light-duty machinery, typically under 1 horsepower. Common applications include HVAC fans, washing machines, and small shop tools.
Critical Warning: A "4L" belt looks dimensionally similar to an "A" belt (both have a 1/2" top width). However, they are not interchangeable. The "4L" series has lower horsepower ratings and is not built for the shock loads that an industrial "A" belt can handle. Using an FHP belt on a heavy industrial drive will lead to premature failure.
Modern high-power drives utilize Narrow Wedge belts. Their deeper profile allows for greater sidewall contact area relative to their top width. A Narrow Wedge belt can transmit up to three times the horsepower of a Classical belt in the same physical space. This allows machine builders to use narrower pulleys and smaller bearings, reducing the overall footprint of the drive.

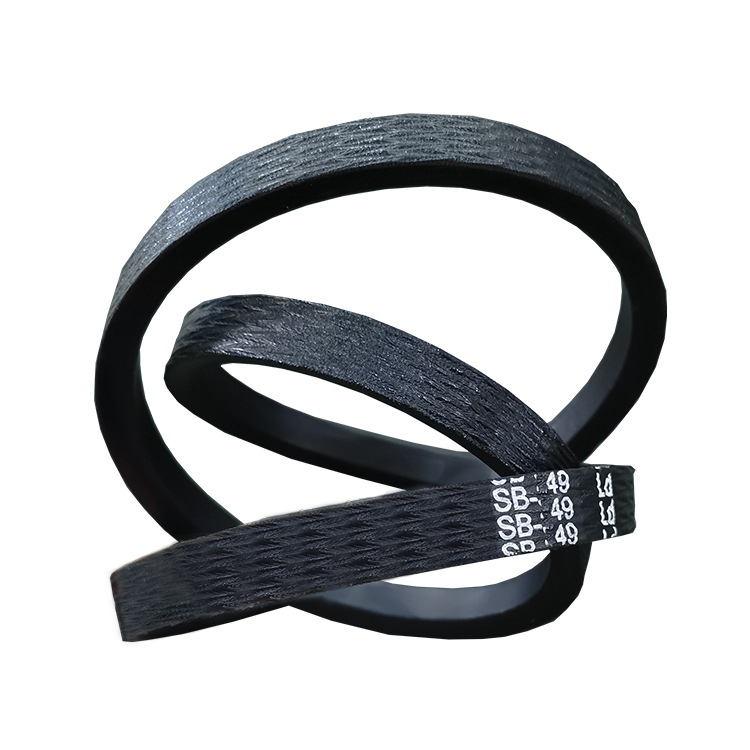

The cogged belt (designated as AX, BX, 3VX) features molded teeth on the bottom inner surface. It is important to note that these teeth are not for timing; they do not mesh with the pulley. Instead, they provide flexibility.
This flexibility offers two distinct benefits. First, the belt runs cooler because the teeth circulate air and reduce bending resistance. Second, it allows the belt to wrap around smaller diameter pulleys where a standard wrapped belt would crack. Upgrading to a cogged variant is often the easiest way to improve drive efficiency.
Once you identify the size, you must select the internal construction material. The environment and load profile dictate this choice.
This is the industry standard for constant speed, constant load applications like ventilation fans and water pumps. The core typically uses polyester cords which provide good strength and minimal stretch. However, standard rubber stretches slightly under heavy load and is vulnerable to severe shock loads.
For applications involving clutching or shock loads, you need Aramid (often referred to by the brand name Kevlar). These belts typically come in distinct colors like blue, gray, or green. They possess high tensile strength and exhibit almost zero stretch.
This material is essential for lawn mowers, snowblowers, and agricultural equipment where the drive engages suddenly. Aramid cords also handle "reverse bending" effectively. If your drive system uses a backside idler pulley to apply tension, Aramid is superior to standard polyester, which may suffer from cord fatigue in that configuration.
Environmental factors also play a role. If your equipment operates in high ambient heat (above 180°F), look for EPDM construction, which resists hardening better than standard neoprene. In volatile environments like grain elevators or mines, ensure the belt carries ISO 1813 anti-static certification to prevent static discharge sparks.
Measuring a V belt is notoriously difficult for the uninitiated. The most common mistake is measuring the top width of a worn belt. As a belt wears, it rides lower in the groove and its top width decreases, leading you to select a smaller, incorrect size.
The numbering systems for belts are inconsistent. Depending on the series, the number might represent the Inside Circumference (IC) or the Outside Circumference (OC). Misinterpreting this can leave you with a belt that is 2 inches too short or too long.
| Belt Series | Measurement Standard | Example Logic |
|---|---|---|
| Classical (A, B) | Inside Circumference (IC) | A42 = 42" IC. The actual tape measure length (OC) is approx 44". |
| FHP (L-Series) | Outside Circumference (OC) | 4L440 = 44" OC. The number matches the tape measure. |
| Narrow (3V, 5V) | Outside Circumference (OC) | 5V1000 = 100" OC. Note that the number is often in tenths of an inch. |
Measure Top Width: Use this to determine the Series. A 1/2" width indicates an A or 4L series; a 5/8" width indicates B or 5L.
Measure Outside Length: Wrap a flexible measuring tape around the outside of the belt to get the OC.
Calculate: Apply the conversion formula. If you determined it is an 'A' section belt, subtract 2 inches from your OC measurement to find the part number (e.g., 44" measured - 2" = A42).
Even the highest quality belt will fail if installed incorrectly. Managing Total Cost of Ownership involves strict adherence to installation protocols.
The cardinal rule of installation is to never pry a belt onto a pulley. Using a screwdriver or lever to roll the belt on snaps the internal tensile cords instantly. The belt might look fine, but it will fail within hours. Always loosen the motor mounts, slide the belt on without force, and then retighten.
Follow the "Matched Set" rule for multiple belt drives. If one belt in a banded set breaks, you must replace all belts simultaneously. Mixing old and new belts—or belts from different manufacturers—results in uneven load sharing. The new, tighter belt will carry the entire load and break immediately.
Proper tension is critical. Too loose, and the belt slips and burns. Too tight, and it destroys motor bearings. We recommend the "Deflection" method: aim for 1/64" of deflection per inch of span length at the specified force.
New V belts require a run-in period. They will seat into the groove and lose tension within the first 24 hours of operation. Re-tensioning after this period is mandatory unless you use premium "maintenance-free" EPDM variants.
Finally, inspect your sheaves (pulleys). A worn sheave develops "dished" sidewalls. If you install a new belt on a worn sheave, the lack of flat contact area concentrates stress on the belt corners. A visual check of the pulley wall is required before every purchase; if the groove looks like a U rather than a V, replace the sheave.
V belts are precision torque tools, not generic rubber bands. Your success depends on matching the cross-section to the horsepower load and selecting the right material for the shock profile. For critical systems, we strongly recommend upgrading from standard Wrapped belts (A/B) to Cogged belts (AX/BX). This simple switch can deliver immediate efficiency gains of 3-5% and significantly reduce running temperatures.
To avoid future downtime, always document the installed belt part number on a durable label near the drive. This prevents the need to measure worn, stretched belts and eliminates the guesswork from your maintenance routine.
A: V belts wedge into a deep groove and typically drive only one or two components, relying on sidewall friction. Serpentine (multi-rib) belts are wider, thinner, and feature multiple shallow grooves. They rely on surface area rather than wedging force and are flexible enough to snake around multiple pulleys, driving complex systems like modern automotive accessories.
A: Yes, and it is highly recommended. A cogged belt (like an AX) has the same dimensions as a standard belt (like an A) but features teeth on the inner surface. These belts run cooler, last longer, and can wrap around smaller pulleys without cracking.
A: The primary indicator is a high-pitched "squealing" noise at startup or under heavy load. This sound is the belt slipping in the groove. Visually, inspect the pulley; if the belt has bottomed out and is touching the bottom of the groove, the belt is worn out or the pulley is ruined.
A: The code "A42" indicates an A-profile belt (1/2" top width) with a nominal Inside Circumference of 42 inches. However, if you measure this belt with a tape measure around the outside, it will actually measure approximately 44 inches. Always check if the part number refers to IC or OC.
