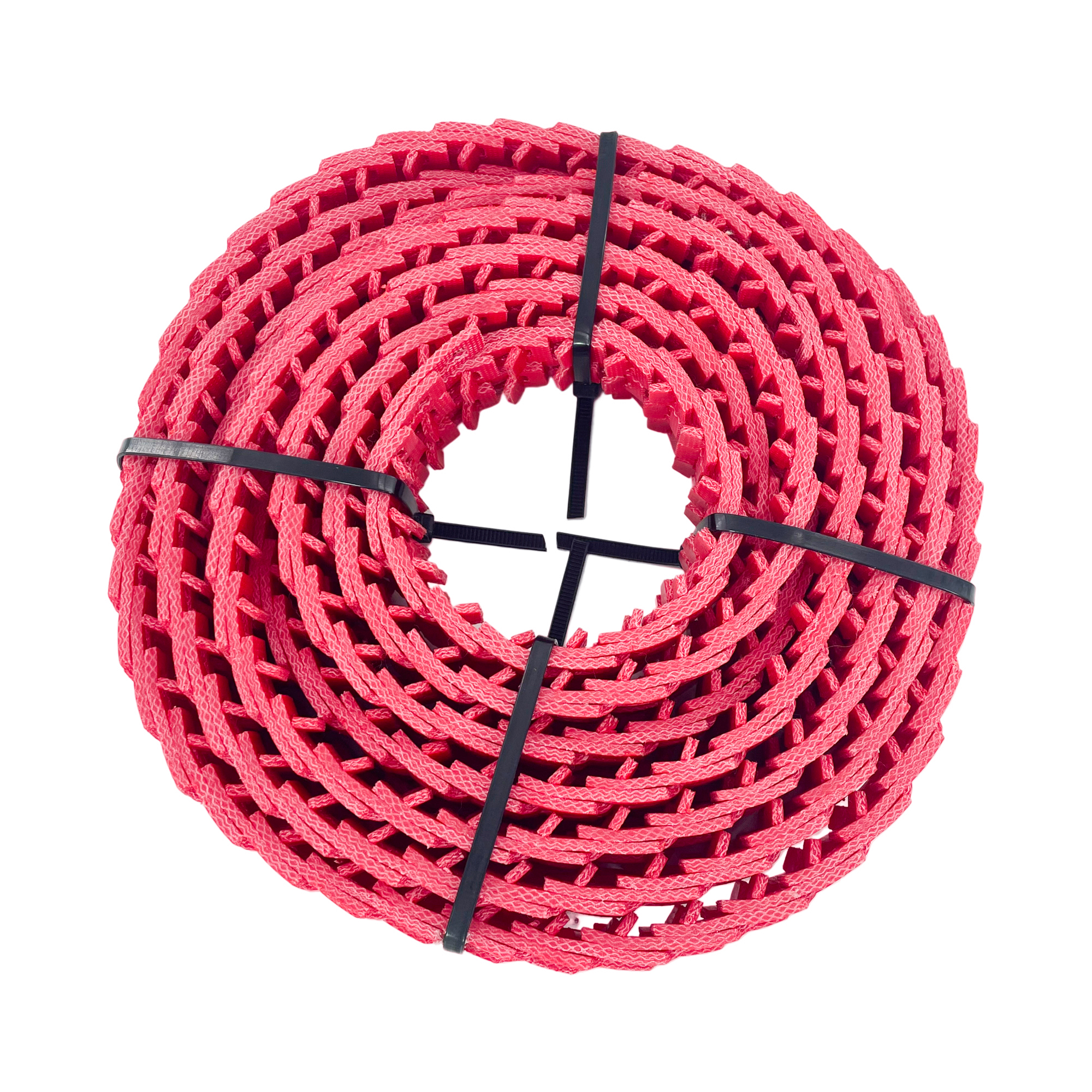

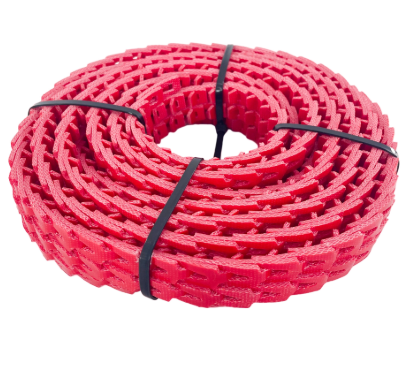

PU link V belts are constructed from polyurethane, a synthetic polymer material selected for its abrasion resistance and load-bearing properties. The polyurethane compound forms the body of each individual link segment, providing structural rigidity while maintaining flexibility for pulley wrap. The material exhibits resistance to oil contact, moisture, and many chemical substances encountered in industrial environments.
Each belt consists of individual polyurethane link segments connected through an interlocking design. Links are joined by inserting the tab end of one segment into the receiving slot of the next, forming a continuous V-shaped belt. This segmented construction allows belts to be assembled to any required length on-site without specialized tools. The V-shaped cross-section of each link maintains proper sheave groove contact for power transmission.
The following table lists standard specifications for PU link V belt profiles:
Section | Top Width (mm) | Height (mm) | Link Length (mm) | Typical Operating Temperature Range |
|---|---|---|---|---|
A | 13 | 8 | 25 | -30°C to +80°C |
B | 17 | 11 | 32 | -30°C to +80°C |
C | 22 | 14 | 40 | -30°C to +80°C |
D | 32 | 19 | 50 | -30°C to +80°C |
Z | 10 | 6 | 20 | -30°C to +80°C |
Each link segment can be added or removed to adjust belt length in increments equal to the individual link length.
PU link V belts are used in manufacturing facilities on conveyor drives, packaging machinery, and assembly line equipment. The adjustable length feature allows quick replacement during maintenance shutdowns, reducing downtime compared to endless belt installations that require pulley disassembly.
The polyurethane material resists moisture and is compatible with washdown environments found in food processing and packaging operations. Link belts are installed on conveyors, filling machines, and labeling equipment where frequent sanitation procedures occur.
Textile mills and printing operations use PU link V belts on looms, printing presses, and finishing equipment. The polyurethane material resists many chemical agents and dyes encountered in these processes, and the link design allows length adjustment without removing drive components.
In agricultural machinery, PU link V belts serve as replacement belts for harvesters, irrigation systems, and processing equipment. The ability to assemble custom lengths in the field supports maintenance operations where specific belt sizes may not be readily available.
The polyurethane material provides abrasion resistance in applications where belts encounter dust, debris, or repeated flexing. The material maintains dimensional stability under continuous operation, reducing the rate of cross-section wear that can cause belt slippage.
Polyurethane exhibits resistance to many oils, greases, and chemical substances. This property makes PU link V belts suitable for applications where oil contact or chemical exposure is present, such as machine tool environments and chemical processing facilities.
The segmented link design produces lower noise levels compared to some solid belt types during operation. The individual link segments can absorb minor vibration and shock loads, contributing to quieter operation in enclosed machinery spaces.
Because links can be added or removed, belt tension can be adjusted by modifying the total belt length. This feature allows operators to fine-tune tension without repositioning motors or adjusting take-up mechanisms, simplifying maintenance procedures.
To assemble a PU link V belt, individual link segments are connected by inserting the connecting tab of one link into the slot of the adjacent link. The required number of links is determined by measuring the belt path length and dividing by the individual link length. Assembly can be performed directly on installed pulleys without disassembling the drive system.
Proper tension is achieved by adding or removing links until the desired deflection measurement is obtained. As with conventional V belts, insufficient tension causes slippage and heat buildup, while excessive tension increases bearing loads. Tension should be checked after the first several hours of operation and adjusted as needed.
Regular inspection should check for cracked or deformed links, loose connections between segments, and signs of excessive sidewall wear. Damaged individual links can be replaced without replacing the entire belt, reducing maintenance material costs. Belts should be replaced when multiple links show damage or when tension cannot be maintained within specification.
PU link V belts are available in standard V-belt cross-sections including Z, A, B, C, and D. Length is customized by adding or removing individual link segments, allowing belts to be assembled to any required length.
Yes, PU link V belts can replace standard rubber V belts in many applications when the cross-section matches the sheave groove. The link design offers the advantage of adjustable length and easier installation.
PU link V belts typically operate within a range of -30°C to +80°C. Actual performance depends on the specific polyurethane formulation and duty cycle.
Calculate the number of links by dividing the desired belt length by the length of one individual link. Link lengths vary by cross-section size, typically ranging from 20 mm for Z section to 50 mm for D section.
Yes, individual damaged links can be removed and replaced with new segments. This feature reduces maintenance costs compared to replacing an entire endless belt when only a section is damaged.
