Customized sidewall conveyor belts are engineered for transporting bulk materials at steep inclines, including fully vertical orientations where conventional flat belts cannot retain material on the belt surface. The belt incorporates corrugated sidewalls along both edges and optional cross-cleats across the belt surface, forming pocket-like compartments that contain material during elevation. This design enables single-belt operation from horizontal to vertical conveying paths without intermediate transfer points, reducing equipment footprint and maintenance requirements compared to multi-stage conveyor systems.
The base belt provides the structural foundation and tensile strength of the system. It is constructed with multiple plies of fabric reinforcement — typically polyester canvas — embedded within rubber compounds. The top and bottom covers are formulated for abrasion resistance, with cover thickness selected based on the material being conveyed and the expected wear rate. Steel cord reinforcement is available for applications requiring higher tensile strength, longer conveyor lengths, or heavier load capacities. The base belt is manufactured to standard conveyor belt specifications, ensuring compatibility with standard pulley and idler configurations.

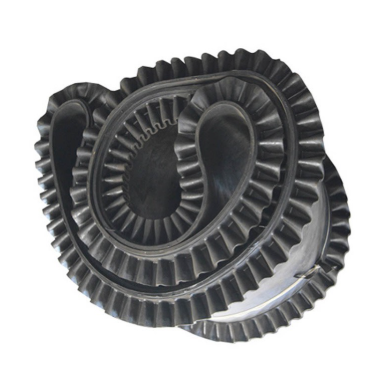

The corrugated sidewalls are vulcanized to the edges of the base belt, forming flexible barriers that contain bulk material during transport. The S-shaped corrugated profile allows the sidewall to flex smoothly as the belt travels around pulleys while maintaining vertical rigidity to hold material on the belt surface. Sidewall height is specified according to the required carrying capacity and incline angle, with taller sidewalls suited for steeper angles and larger material volumes. Sidewall thickness and corrugation pitch are engineered to balance flexibility with structural stability.
Cross-cleats, also known as transverse ridges, are mounted across the belt surface between the sidewalls, creating individual pockets that prevent material from sliding backward on inclines. Cleats are available in various profiles, including straight, angled, or corrugated designs, with spacing determined by material characteristics and incline angle. Steeper inclines generally require closer cleat spacing to maintain material retention. Cleats are bonded to the base belt using vulcanization for a durable connection that withstands repeated flexing and material loading.
Parameter | Available Range / Options |
Sidewall Height | 40 mm to 500 mm |
Sidewall Profile | S-shaped corrugated |
Cleat Type | Straight, angled, or corrugated |
Cleat Spacing | Custom specified per application |
Base Belt Width | 300 mm to 2200 mm |
Base Belt Reinforcement | Polyester fabric plies or steel cord |
Cover Rubber Grade | Standard abrasion-resistant, heat-resistant, oil-resistant |
Operating Incline Angle | 0° to 90° (vertical) |
Sidewall conveyor belts are deployed across industries where space constraints or elevation changes require steep-angle material handling. In mining operations, they transport ore and aggregate from lower extraction levels to processing areas within limited footprint zones. Port terminals use them for ship loading and unloading of bulk commodities such as grain, coal, and minerals where vertical elevation is required between storage and vessel levels. Construction material production, including cement and aggregate plants, utilizes these belts for vertical transport in processing lines and silo feeding systems. Recycling facilities and waste management operations deploy them for elevating sorted materials to processing equipment. Additional applications include chemical processing plants, fertilizer production facilities, and biomass energy facilities where bulk material elevation within confined spaces is required.
Selecting the appropriate sidewall conveyor belt involves evaluating several parameters. The incline angle is a primary determinant — steeper angles require taller sidewalls and closer cleat spacing to prevent material spillage and backsliding. Material characteristics such as particle size distribution, bulk density, moisture content, and abrasiveness influence the base belt cover grade, sidewall height, and cleat design. Conveyor length and hourly capacity requirements affect the reinforcement type selection, with longer or higher-capacity systems often requiring steel cord reinforcement. Environmental factors including ambient temperature range, humidity levels, and chemical exposure guide the selection of rubber compounds for both the base belt and sidewalls.
Sidewall conveyor belts can operate at angles from 0° (fully horizontal) up to 90° (fully vertical), depending on the sidewall height, cleat configuration, and material flow characteristics. Steeper angles require appropriately sized sidewalls and cleat spacing to retain material during transport. The specific configuration is determined based on the material properties and required throughput.
Corrugated sidewalls are bonded to the edges of the base belt through a hot vulcanization process that creates a molecular-level bond between the sidewall rubber compound and the base belt. This method ensures the sidewalls remain securely attached under load and during repeated flexing around pulleys throughout the service life of the belt.
Sidewall conveyor belts handle a wide range of bulk materials including ores, aggregates, coal, grain, cement, fertilizers, recycling materials, and biomass. The specific belt configuration — including cover grade, sidewall height, and cleat design — is matched to the material's particle size, density, moisture content, and abrasiveness.
Customization includes sidewall height ranging from 40 mm to 500 mm, belt width from 300 mm to 2200 mm, cleat type and spacing, base belt reinforcement (polyester fabric plies or steel cord), and rubber compound grade (standard abrasion-resistant, heat-resistant, or oil-resistant). All specifications are tailored to each application's incline angle, capacity requirements, and material characteristics.
